Aluminium Enclosures
The aluminium enclosure provides a durable and secure solution for housing energizers and accessories. Its weatherproof construction and corrosion-resistant aluminium finish make it suitable for use in coastal environments. The enclosure is fitted with a stainless steel lock and key for added security, as well as ventilation openings to promote airflow and cooling.
Features:
- Ventilated to promote cooling
- Wooden electrically isolated backing plate for mounting the energizers and accessories
- Large capacity to accommodate dual energizers, a solar regulator, and deep-cycle batteries
- The Shock Box version enhances security by electrifying the enclosure to protect both the box and its contents.
Specifications:
| Weight | N/A |
|---|---|
| Material | Aluminium tread plate with a wooden internal back mounting board |
| IP rating | IP54 |
| Internal Dimensions | Small: 450(w) x 610(h) x 260(d)mm |
| External Dimensions | Small: 450(w) x 640(h) x 310(d)mm |
| Stock Code | Description |
|---|---|

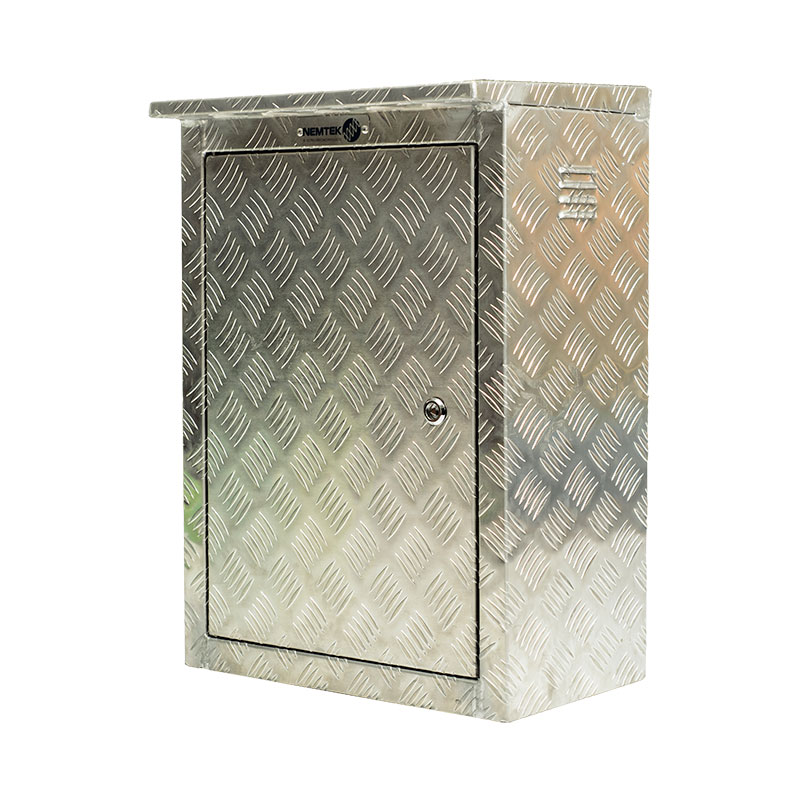

| ENC-ALU/S | Small Aluminium Enclosure 450(w) x 610(h) x 260(d)mm |

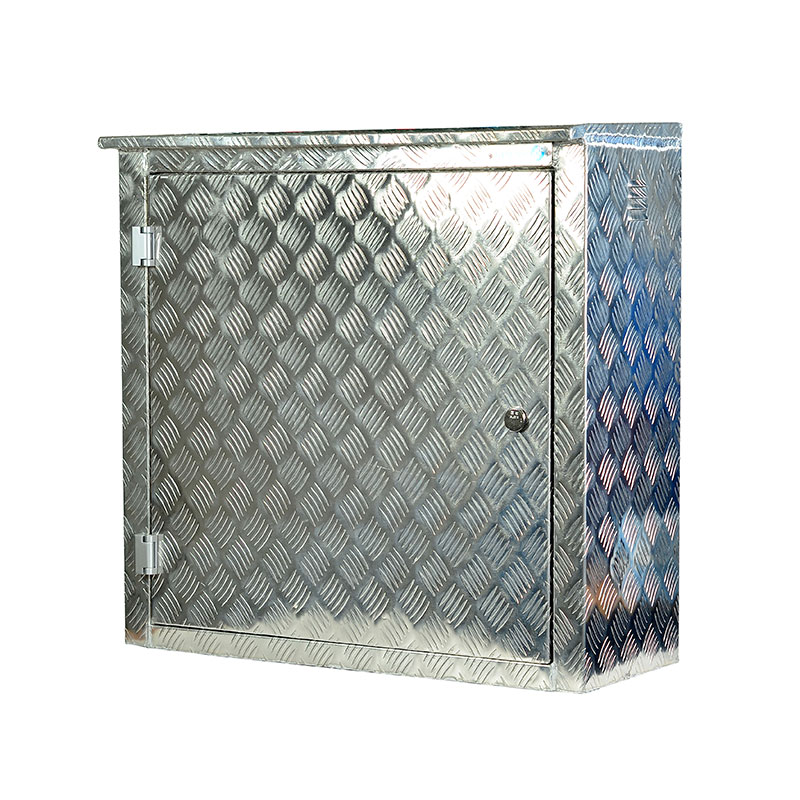

| ENC-ALU | Large Aluminium Enclosure 800(w) x 610(h) x 300(d)mm |

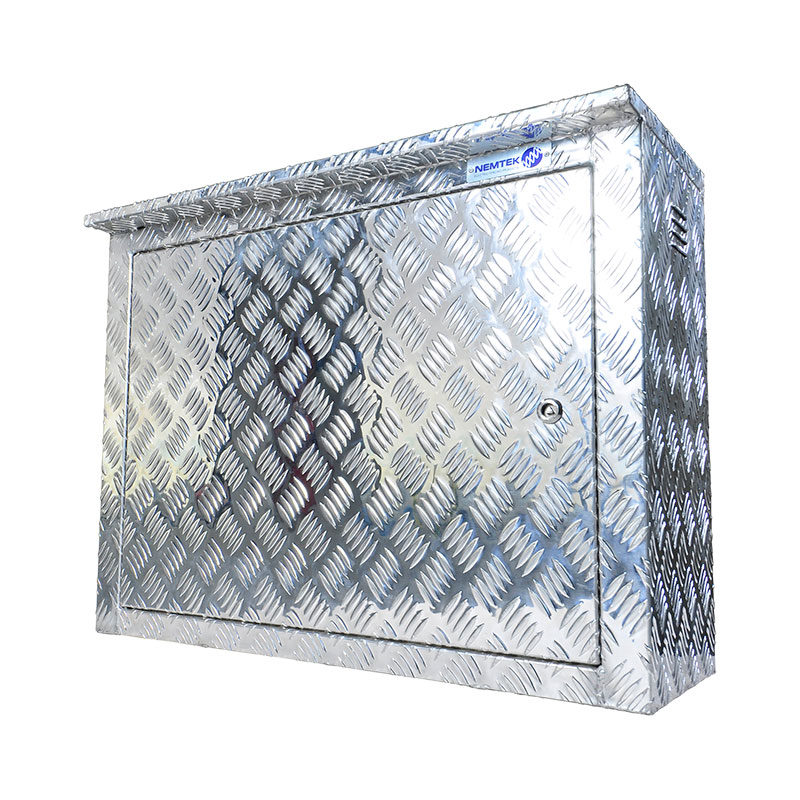

| ENC-ALU/XL | XL Aluminium Enclosure 800(w) x 760(h) x 300(d)mm |
